Executive Summary
Gold mine tailings storage facilities (TSFs) present some of the most aggressive chemical and physical challenges to engineered barrier systems. Geosynthetic clay liners (GCLs) are widely recognized as a vital component of modern composite base and cover liners, yet their long-term hydraulic performance is often compromised by factors such as cation exchange, desiccation, freeze-thaw cycles, and inconsistent installation practices.
Based on 20 years of specialized manufacturing and global project feedback, this white paper distills the five most decisive engineering controls that can extend the functional service life of a GCL barrier in gold tailings applications beyond conventional expectations. By addressing these factors systematically – from raw material selection to long-term monitoring – operators can dramatically reduce the risk of seepage, regulatory non-compliance, and costly remedial works.
Introduction
Gold extraction processes – whether through cyanide leaching, flotation, or refractory ore treatment – generate tailings slurries with elevated concentrations of dissolved salts, heavy metals, and often extreme pH levels. When a GCL is deployed as part of a composite liner, the bentonite component must withstand cation exchange (e.g., Na⁺ replaced by Ca²⁺, Mg²⁺ or heavy metal ions), osmotic gradients, and cyclic wet-dry conditions that can increase hydraulic conductivity by orders of magnitude if not properly mitigated.
However, field experience demonstrates that a GCL’s service life is not solely a material property – it is a system outcome. The following five factors, when rigorously implemented, work synergistically to keep the bentonite hydrated, the montmorillonite interlayer expanded, and the liner intact for decades.

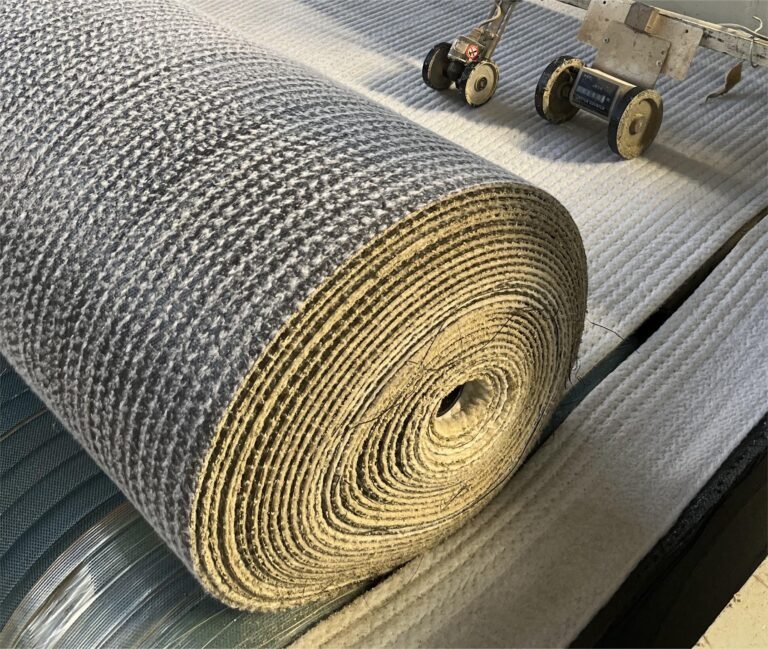

The heart of any GCL is the bentonite core. Standard sodium bentonite, while excellent in low-salinity environments, rapidly degrades in permeability when exposed to gold leachates containing 300 mg/L or more of calcium, or high total dissolved solids (TDS) typical of process water.
Solution:
Polymer-modified bentonite (PMB): Incorporating specific long-chain polymers, polyacrylates, or proprietary organic activators into the bentonite dramatically improves resistance to cation exchange and maintains low permeability (e.g., k ≤ 5×10⁻¹¹ m/s) even in contact with synthetic or process liquors with TDS exceeding 10,000 mg/L.
Site-specific compatibility testing: Before any GCL is specified, a comprehensive suite of laboratory tests must be performed using actual site tailings liquor. Key tests include index swell, fluid loss (API 13B), and hydraulic conductivity under anticipated field gradients (ASTM D6766). Relying solely on generic “bentonite quality” specifications is insufficient for gold tailings.
Recommendation: Work with a manufacturer capable of custom-formulating bentonite blends for your specific leachate chemistry. Request long-term (90+ day) permeability test results, not just short-term data.
A GCL rarely functions in isolation. In a typical TSF base or side-slope liner, the GCL is part of a composite system, often combined with a 1.5 mm or 2.0 mm HDPE geomembrane (GM). The synergy between the GCL and the GM is what delivers the required environmental security, but the design must address several often-overlooked mechanical and hydraulic interactions.
Critical design considerations:
Interface shear strength: The GCL-GM interface on slopes must be stable under both hydrated and as-placed conditions. Crest loads and staged construction should be analyzed using site-specific peak and residual shear strengths from the selected GCL/GM pair.
Drainage above the liner: To prevent the build-up of a hydraulic head on the liner, a properly graded leachate collection and removal system (LCRS) is mandatory. A minimum 300 mm of granular drainage, or a certified geocomposite drain, must be installed and regularly flushed.
Stress crack resistance of GM: The composite action works only if the GM remains intact. Selecting an HDPE geomembrane with high stress crack resistance (SCR) – specified via ASTM D5397 – is essential, particularly where the GCL may experience differential hydration or local subsidence.
Outcome: A well-designed composite system limits the GCL’s exposure to sustained high-head leachate, reduces ionic ingress, and physically protects the bentonite.
Even premium materials fail if installation protocols are compromised. The most frequent root causes of premature GCL failure in mining applications are inadequate overlap, premature hydration, and immediate damage from construction traffic.
Three critical installation rules:
Overlap and bentonite enhancement: All longitudinal and end-of-roll overlaps must achieve a minimum 150 mm physical seal, with a continuous bead of supplemental granular or mastic bentonite applied between the layers. This seal must be free of wrinkles, soil, or free water. On slopes, overlaps should be oriented parallel to the fall line and further secured.
Controlled hydration: GCLs must be covered promptly with the geomembrane or a protective soil layer to prevent free swelling and UV degradation. If rain is forecast, exposed edges must be temporarily weighted and covered. Hydration from clean water prior to leachate contact is beneficial, but uncontrolled swelling can lead to bentonite extrusion under the GM during shear.
Protection from construction damage: Heavy equipment shall never travel directly on the GCL or the GM. A protective cover layer (e.g., 300 mm of screened, non-angular soil or a heavy non-woven geotextile) must be placed sequentially. Where this is not feasible, prefabricated protection boards or conveyor-access methods must be employed.
The long-term risk profile shifts dramatically once the tailings cell is decommissioned and enters closure. In covers, GCLs experience diametrically opposite stressors: desiccation, root penetration, burrowing animals, and freeze-thaw cycling.
For gold TSF covers, longevity demands:
Minimum overburden: A composite cover design should place a minimum 600 mm to 900 mm of soil (or an equivalent capillary barrier) above the GCL to maintain moisture and thermal buffering. This soil layer must be vegetated with shallow-rooted native species to prevent root penetration while evapotranspiration is encouraged.
Desiccation monitoring: In semi-arid or arid climates (typical of many gold mining regions), cyclic drying can cause bentonite shrinkage and cracking. Installing moisture probes beneath the GCL and within the cover soil provides early warning. Where desiccation risk is high, a textured or structured GCL surface can help anchor the bentonite and reduce crack propagation.
Edge anchoring: Perimeter trenches or anchor berms must be designed to prevent lateral slippage and to stop burrowing animals from accessing the GCL edge – a frequent point of liner compromise.
A 100-year closure design is aspiration without verification. Smart operators integrate monitoring plans that provide actionable data over decades, allowing for early intervention before minor issues become regulatory liabilities.
Key monitoring strategies:
Leak detection systems (LDS): Under the primary liner, electrical leak location surveys (ASTM D7007) and permanent sensors can map the precise location of any breach, enabling targeted repairs without full excavation.
Settlement and deformation tracking: Survey markers installed on the cover surface and inclinometers on slopes detect differential settlement that could strain the GCL. Correlate this with moisture data to anticipate potential stress zones.
Grab sampling and in-situ permeameter testing: Every 5–10 years, selective excavation of small “windows” through the cover allows direct measurement of the GCL’s moisture content, cation exchange status, and hydraulic conductivity. This empirical data resets the closure timeline confidence.
Repair protocol readiness: Have a pre-engineered repair plan, including a stockpile of compatible GCL material and approved seaming techniques, so that any discovered defect can be addressed in a matter of days, not months.
Conclusion
The service life of a GCL in a gold tailings environment is not determined by the bentonite alone – it is a function of systematic engineering. By rigorously addressing these five factors – chemically compatible bentonite formulation, robust composite design, meticulous installation, protective cover design, and perpetual monitoring – owners and engineers can realistically achieve containment performance exceeding 50 years, even under the harsh conditions typical of gold tailings.
With two decades of continuous innovation in GCL manufacturing, [Your Company Name] stands ready to partner with mining operators worldwide to tailor these solutions to your specific project. From pre-qualification testing through installation oversight and long-term support, our commitment is to extend the life of your barrier, and the safety of your site.
References (Selected)
ASTM D6766 – Standard Test Method for Evaluation of Hydraulic Properties of Geosynthetic Clay Liners Permeated with Potentially Incompatible Aqueous Solutions.
Koerner, R. M. (2012). Designing with Geosynthetics, 6th Ed. Xlibris.
Shackelford, C. D., & Sample-Lord, K. M. (2014). “Hydraulic Conductivity of Polymer-Modified Bentonite to Coal Combustion Product Leachates.” Journal of Geotechnical and Geoenvironmental Engineering, 140(3).
ICOLD Bulletin 135 – Geomembrane Sealing Systems for Dams and Reservoirs.
GRI-GCL3 – Test Methods, Required Properties, and Testing Frequencies of Geosynthetic Clay Liners (GCLs).
Disclaimer: This white paper provides general technical guidance only. Specific design parameters must be verified through site-specific investigation and testing by qualified professionals.
